Woodlands North RTS Link Station

RTS
Woodlands North
Artist’s Impression of RTS Link Woodlands North Station Concourse (Image: LTA)
Artist’s Impression of RTS Link Woodlands North Station Concourse (Image: LTA)
Address TBC
Line Served Singapore–Johor Bahru RTS Link
Operator RTS Operations Pte Ltd
Structure Underground
Platform Spanish solution
Opening End 2026

Woodlands North RTS Station is the Singapore terminus of the Singapore–Johor Bahru RTS Link, currently under construction. Scheduled for completion in 2026, the station

Rail connections are offered via the adjacent Woodlands North Station, the northern terminus of the Thomson-East Coast Line (TEL).


Station Layout
L1 Street Level Pick Up / Drop Off Point, Taxi Bays, Retail Street
B1 Ticket Concourse Faregates, Ticketing machines, Passenger Service Centre
SG CIQ Singapore Immigration (for departing passengers)
Arrival Concourse Arrival Concourse (for arriving passengers)
B2 Departure Platforms Singapore–Johor Bahru RTS Link towards Bukit Chagar (Malaysia)
Arrival Platforms For Alighting Only
MY CIQ Malaysia Immigration (for departing passengers)
B3 Transit Link Transit Link to Departure Platform (for departing passengers)




Indicative Platform Layout
Alighting only
MRT_rail (1)
(←) Singapore–Johor Bahru RTS Link towards Bukit Chagar (Malaysia)
MRT_rail (1)
Alighting only

Platforms at Woodlands North RTS station will be based on the Spanish solution, with a central platform for boarding passengers, and two side platforms for alighting passengers.


Departure Flow (towards Bukit Chagar, Malaysia)

Before entering the station, passengers heading toward Malaysia would have cleared both Malaysia & Singapore customs at the adjacent CIQ building. The boarding platform serves trains on both sides, and passengers can board trains on either platform.

Arrival Flow (from Bukit Chagar, Malaysia)

Passengers arriving from Malaysia would have already cleared both Singapore & Malaysia customs at Bukit Chagar, and can directly exit the station upon alighting from the train.


Station Amenities

  • To Be Confirmed

Exits

Woodlands North station will be served by two surface exits; one at the pick-up and drop-off point, and the other at the CIQ building.


Transport Connections

Woodlands North station connects to a bus stop in the vicinity, as well as taxi stands and passenger pick-up points.

Rail

Rail connections are offered via the adjacent Woodlands North Station, the northern terminus of the Thomson-East Coast Line (TEL). The TEL connects commuters directly to the City areas of Orchard, Maxwell (near Chinatown), and Gardens by the Bay. All other stations within the MRT/LRT network can be reached within a single journey ticket.

Bus

Bus Service 856 connects Woodlands North to Marsiling, Woodlands, Sembawang and Yishun.

Bus Stop Exit Bus Routes
47201 – Woodlands North Coast Rd (W’lands Nth Stn) TBC 856

Road

Taxi stands and pick-up/drop-off points are located near station exits:

Exit Road Provisions
TBC Woodlands North Coast Road Taxi stand, Pick-up/drop-off point

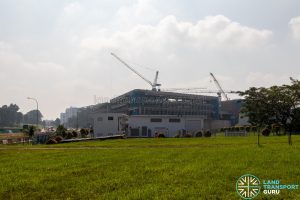

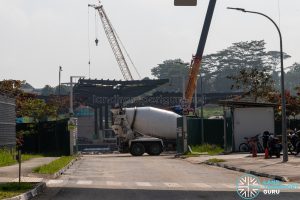

Construction

Contract T232 – Construction of Stations, Tunnels and CIQ Building for Rapid Transit System (RTS) Link was awarded to Penta-Ocean Construction Co Ltd at a contract value of $932,800,000 in November 2020. The tender was called by the Land Transport Authority (LTA) back in January 2018. The contract covers the construction of the RTS Link Woodlands North station, tunnels and the Customs, Immigration, and Quarantine (CIQ) building in Singapore.

Contract T235 – Construction of Viaducts and Tunnels for Rapid Transit System (RTS) Link was called by LTA in September 2018 and will be awarded in the first quarter of 2021.

The groundbreaking ceremony for RTS Link construction in Singapore was held on 22 January 2021 at the site of the RTS Link Woodlands North station. Passenger service is expected to commence in end 2026.

The RTS Link Woodlands North Station will be constructed underground at a maximum depth of 28 metres. There will be three stories, with two basement levels and an underground linkway to the CIQ building. The RTS Link Woodlands North Station and CIQ building are approximately 10 times the size of a typical MRT station. These facilities will be adjacent to Thomson-East Coast Line (TEL) Woodlands North MRT station and be seamlessly connected via an underground concourse. The tunnels will be connected to the viaduct that crosses the Straits of Johor at a height of 25 metres.

Incidents

On 27 June 2024 at around 9:30am, 2 workers were injured when steel reinforcement bars that were being installed for the station’s foundation fell. The bars had swayed before falling. The workers were taken to Woodlands Health Campus Hospital, where one of the workers, a 48 year old Bangladeshi national employed by Maranatha Contractors, died. The other injured 49 year old worker has minor injuries and was later discharged. [1]


Preview Video
