Prince Edward Road MRT Station

 CC32
Prince Edward Road

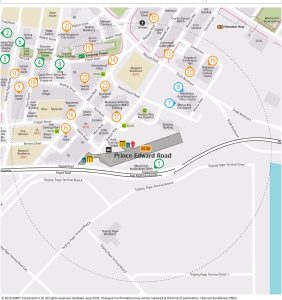

Station map
Languages 爱德华太子路 | பிரின்ஸ் எட்வர்ட் ரோடு
Lines   Circle Line
Operator SMRT Trains
Structure Underground
Platform Island
Opening Year 2025

Prince Edward Road MRT Station (CC32) is an underground station located along the Circle Line (CCL) Stage 6. It is built along Shenton Way, near the junctions of Keppel Road an Palmer Road, bringing rail connectivity to the Shenton Way business district, nearby places of worship, and future developments in the Keppel area.

The station is named after the nearby Prince Edward Road. The Keppel Port area south of the station is planned to be redeveloped after 2030, once the container port is moved to Tuas. The future Greater Southern Waterfront region currently under planning will provide more options for city living.

As the station box lies underneath old Shenton Way Bus Terminal, the bus terminal was relocated to a new site further north to facilitate construction works. The station is targeted for completion and opening in Year 2025.


First / Last Train Timings

Circle Line – CC32 Prince Edward Road
Destination First Train Last Train
Weekdays
& Sat
Sun &
Public Holidays
Daily

Station Layout

L1 Street level Bus stops, Taxi stand, pick-up/drop-off point
B1 Concourse Faregates, Ticketing Machines, Passenger Service Centre
B2 Platform ? Circle Line (Inner Loop) towards  CE2  NS27   Marina Bay
Platform ? No Train Service (Future Provision)
B3 Platform ? Circle Line (Outer Loop) towards  CC29  NE1  HarbourFront
Platform ? No Train Service (Future Provision)

Platforms

Circle Line (B2):
MRT_rail (1)
Platform ?: Circle Line (Inner Loop) towards  CE2  NS27   Marina Bay (→)
Platform ?: No Train Service (Future Train Line Provision)
MRT_rail (1)
Circle Line (B3):
MRT_rail (1)
Platform ?: Circle Line (Outer Loop) towards  CC32  Cantonment and  CC29  NE1  HarbourFront (←)
Platform ?: No Train Service (Future Train Line Provision)
MRT_rail (1)

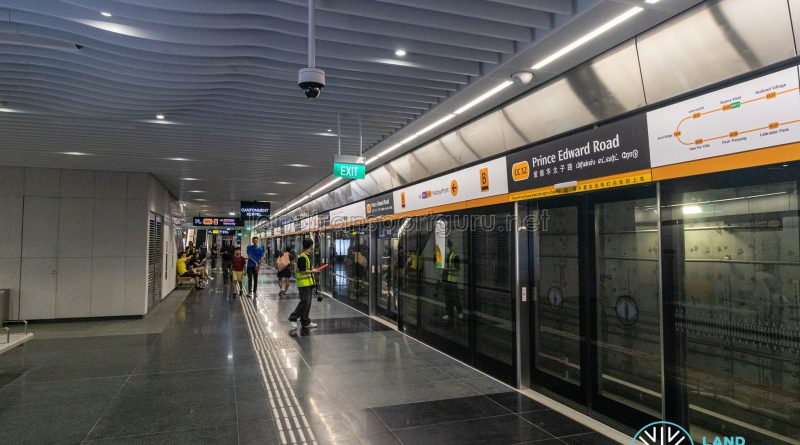

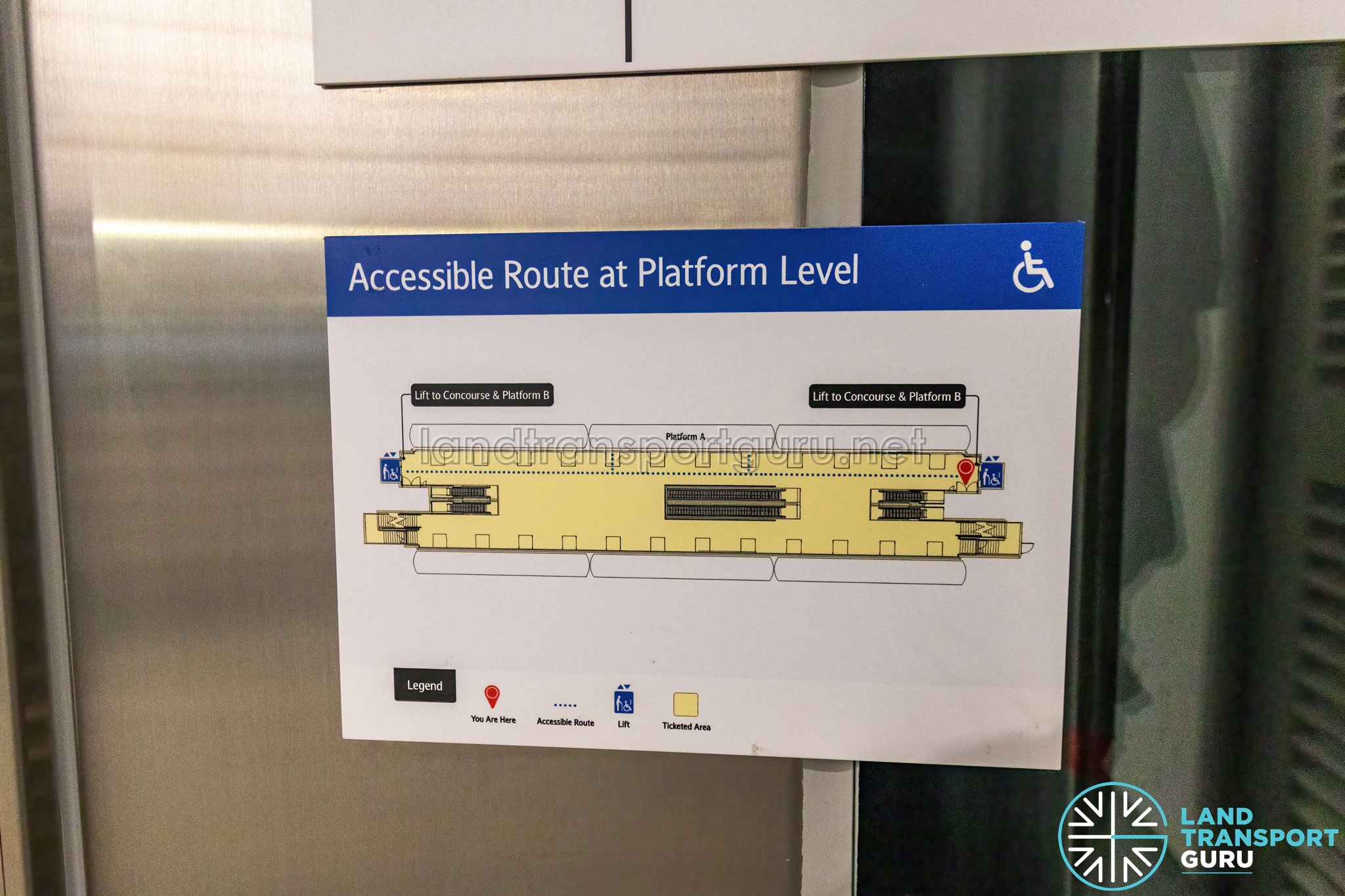

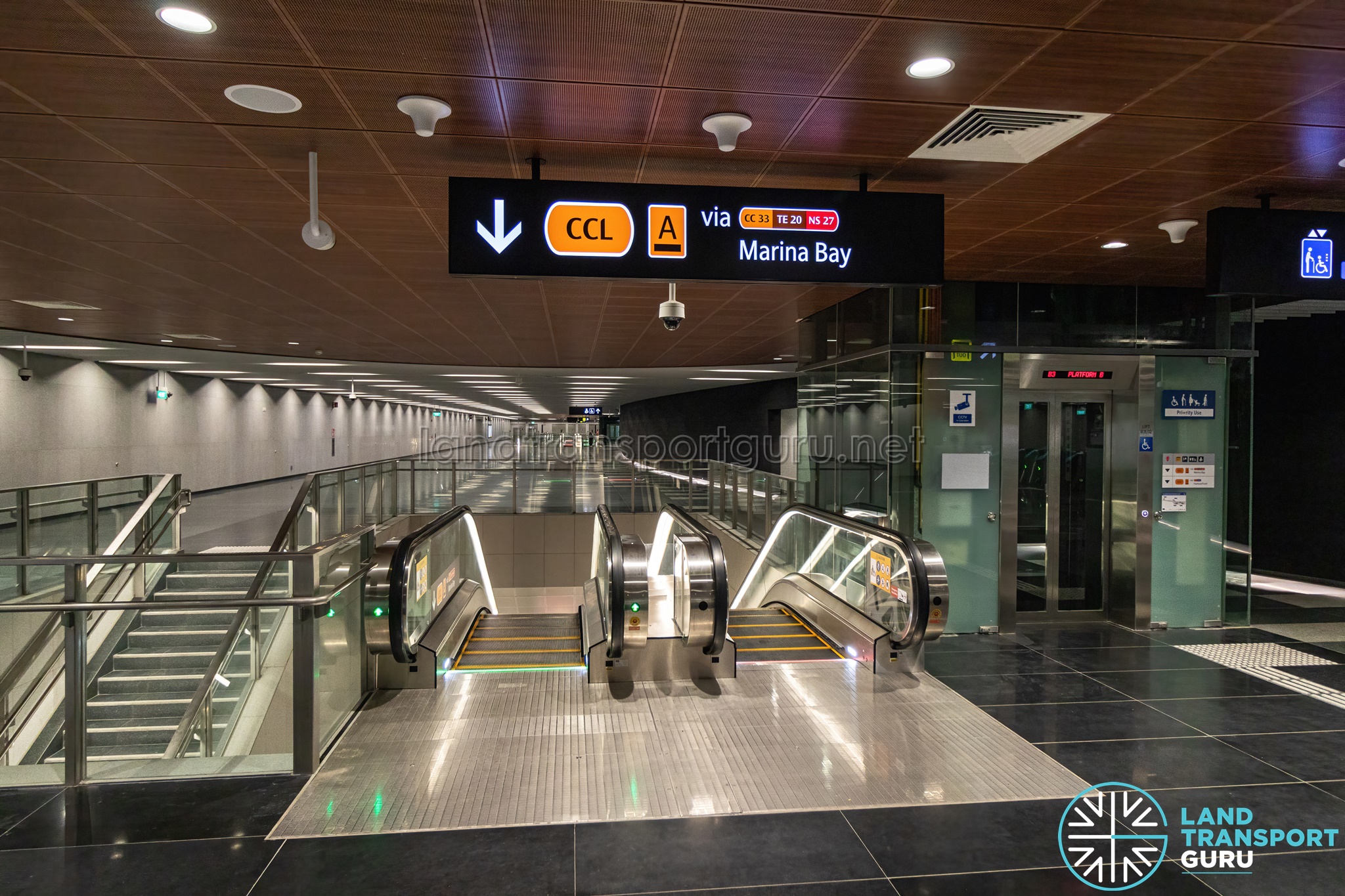

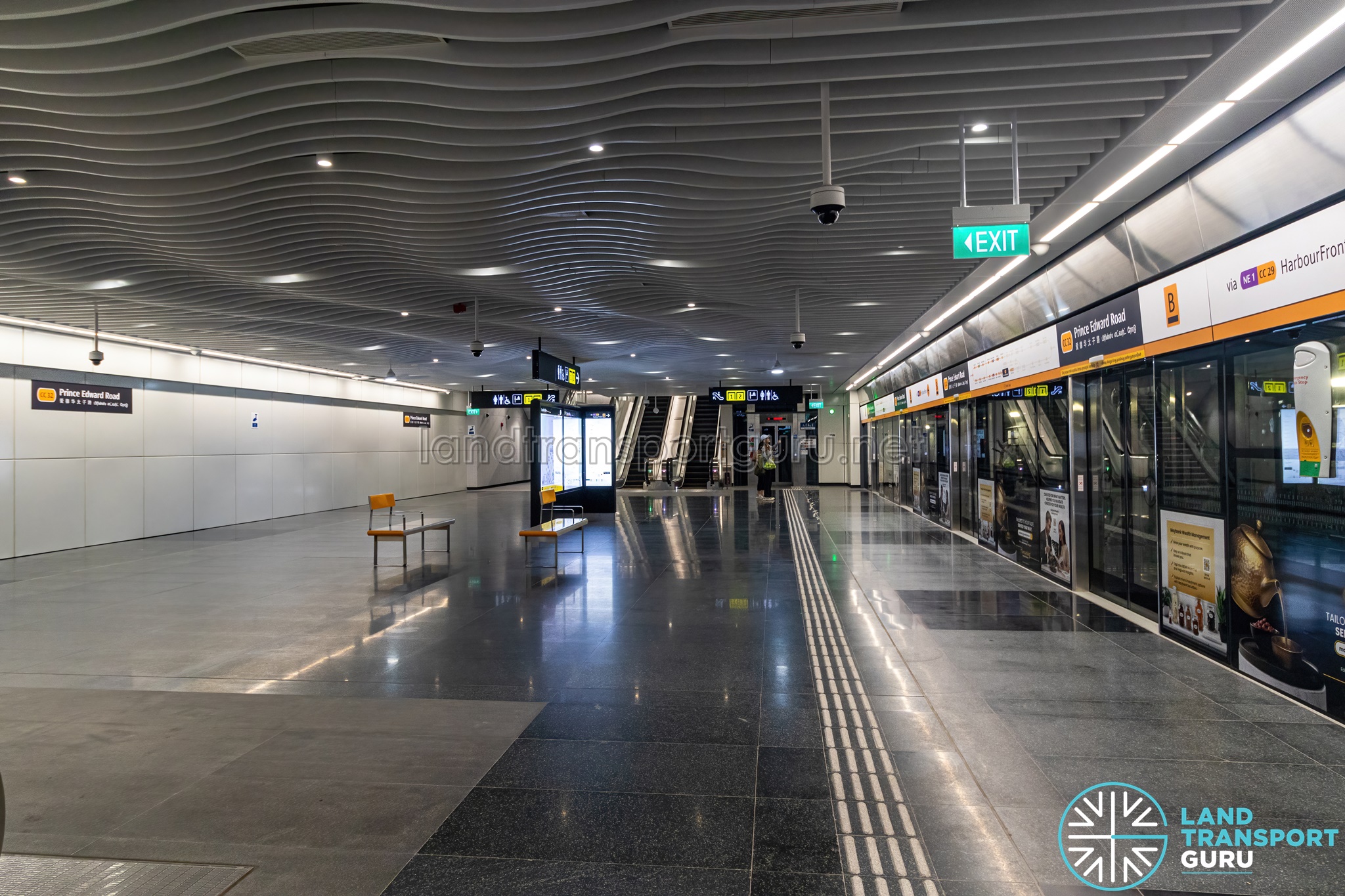

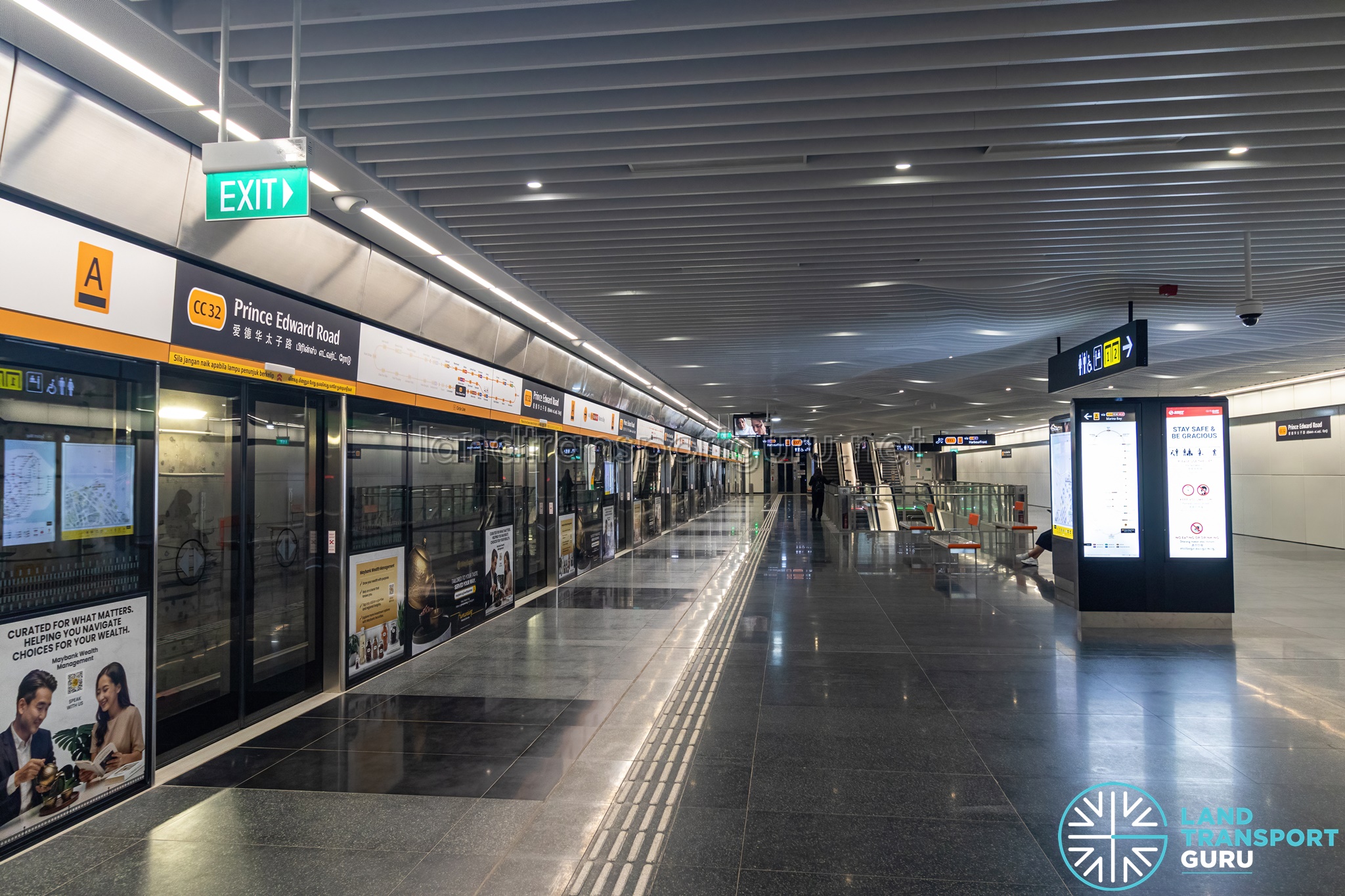

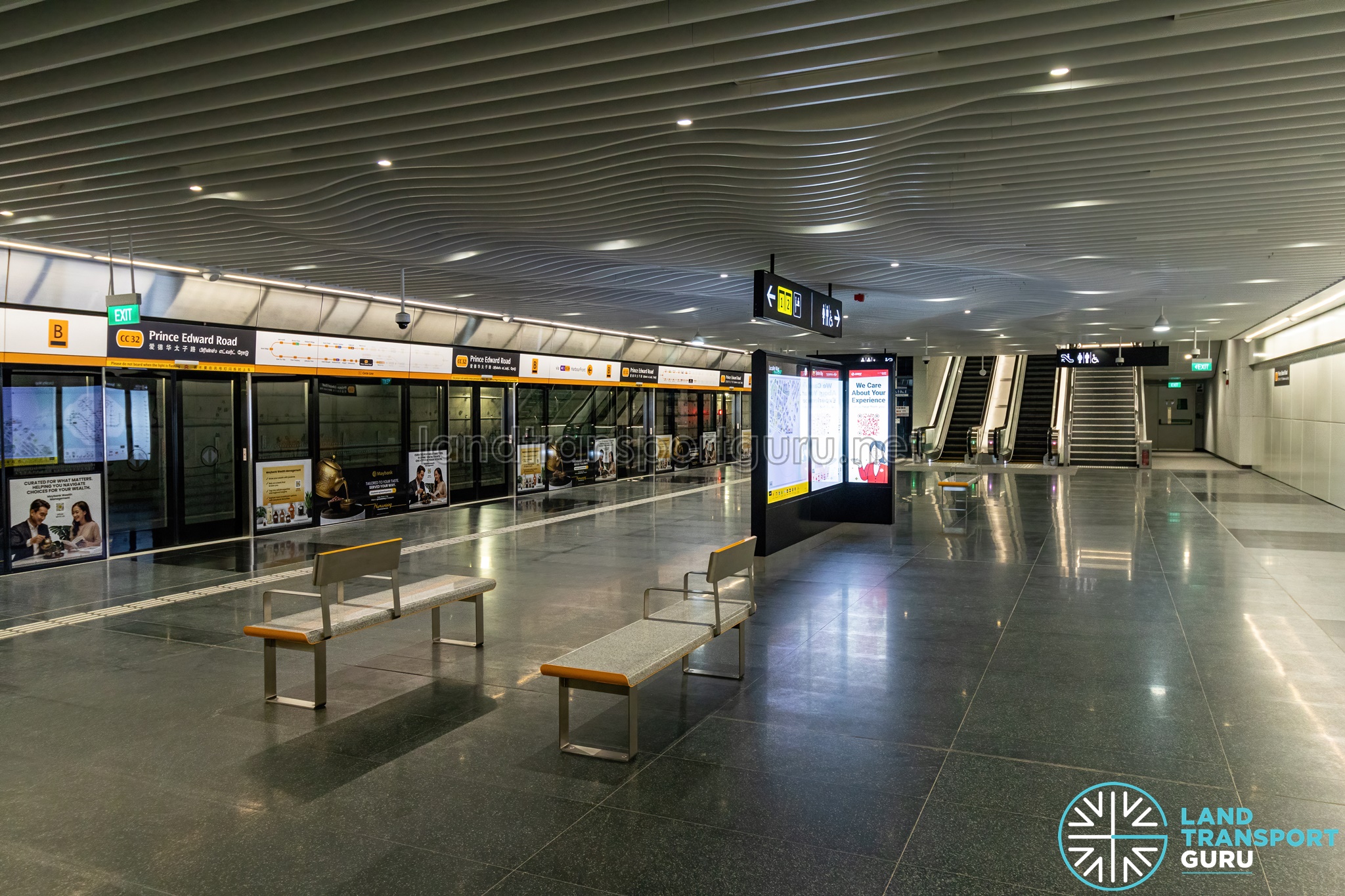

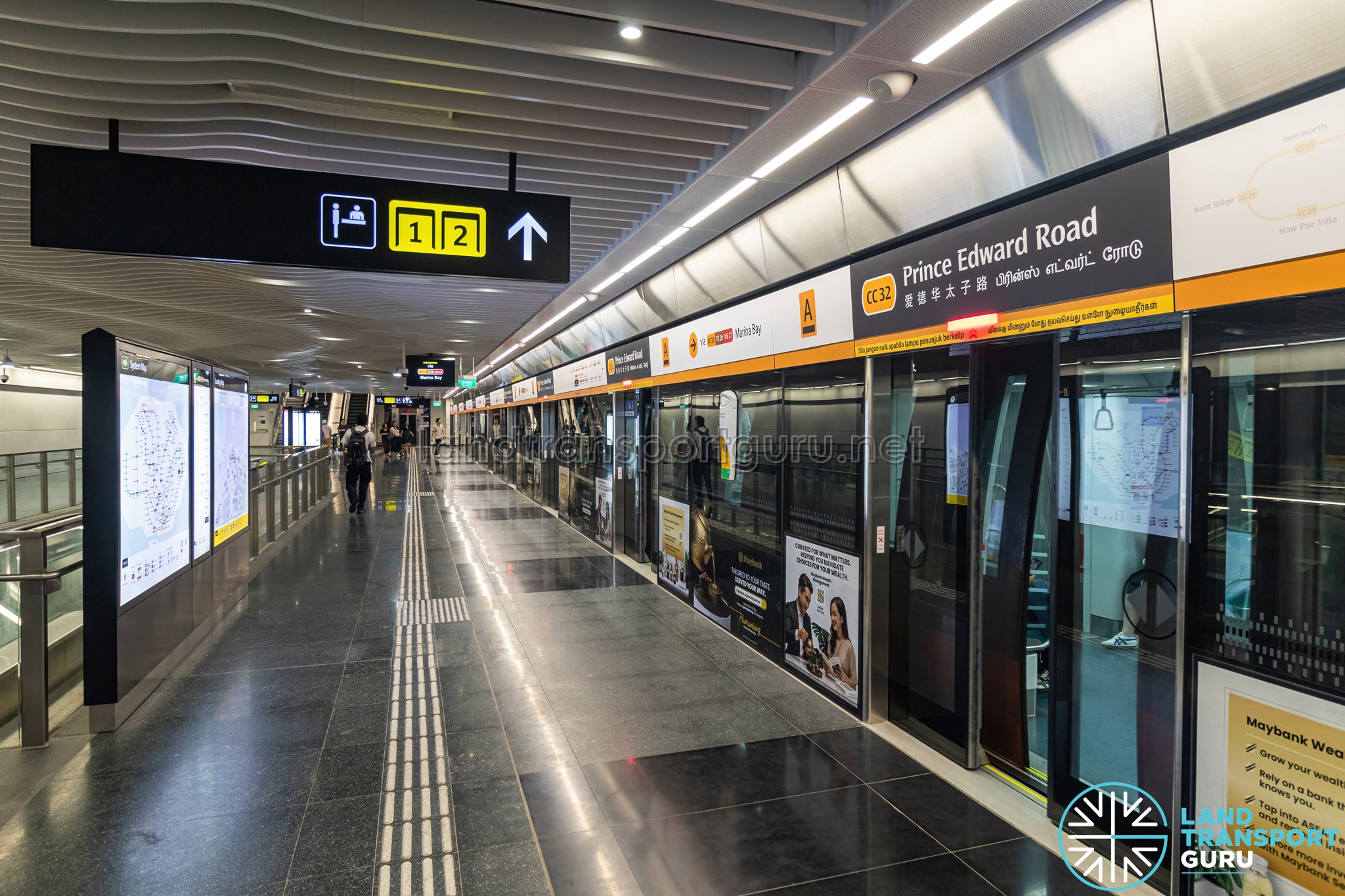

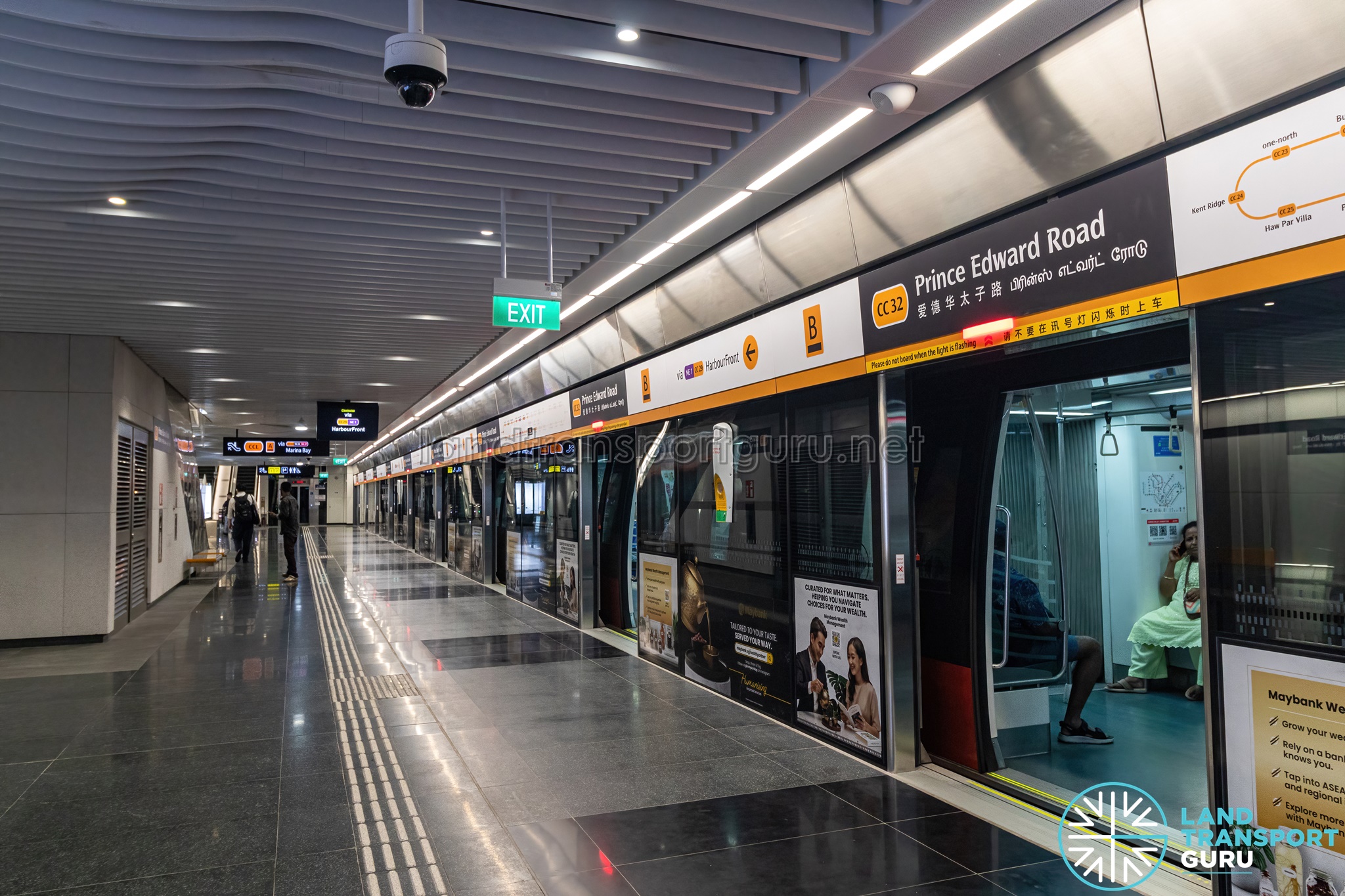

Prince Edward Road MRT Station has four platforms in which only two are utilized by the Circle Line for trains travelling in either direction. The other two unused platforms are provisions for a future MRT Line. Arranged in a two island platforms spanning two underground floors, the future cross platform transfer layout allows for quicker transfer between lines and optimized commuter flow based on their direction of travel. Full-height Platform screen doors isolate the air-conditioned station from the tunnel environment, enhancing commuter safety and station comfort. A set of escalators, stairs and lifts connect to the concourse above.

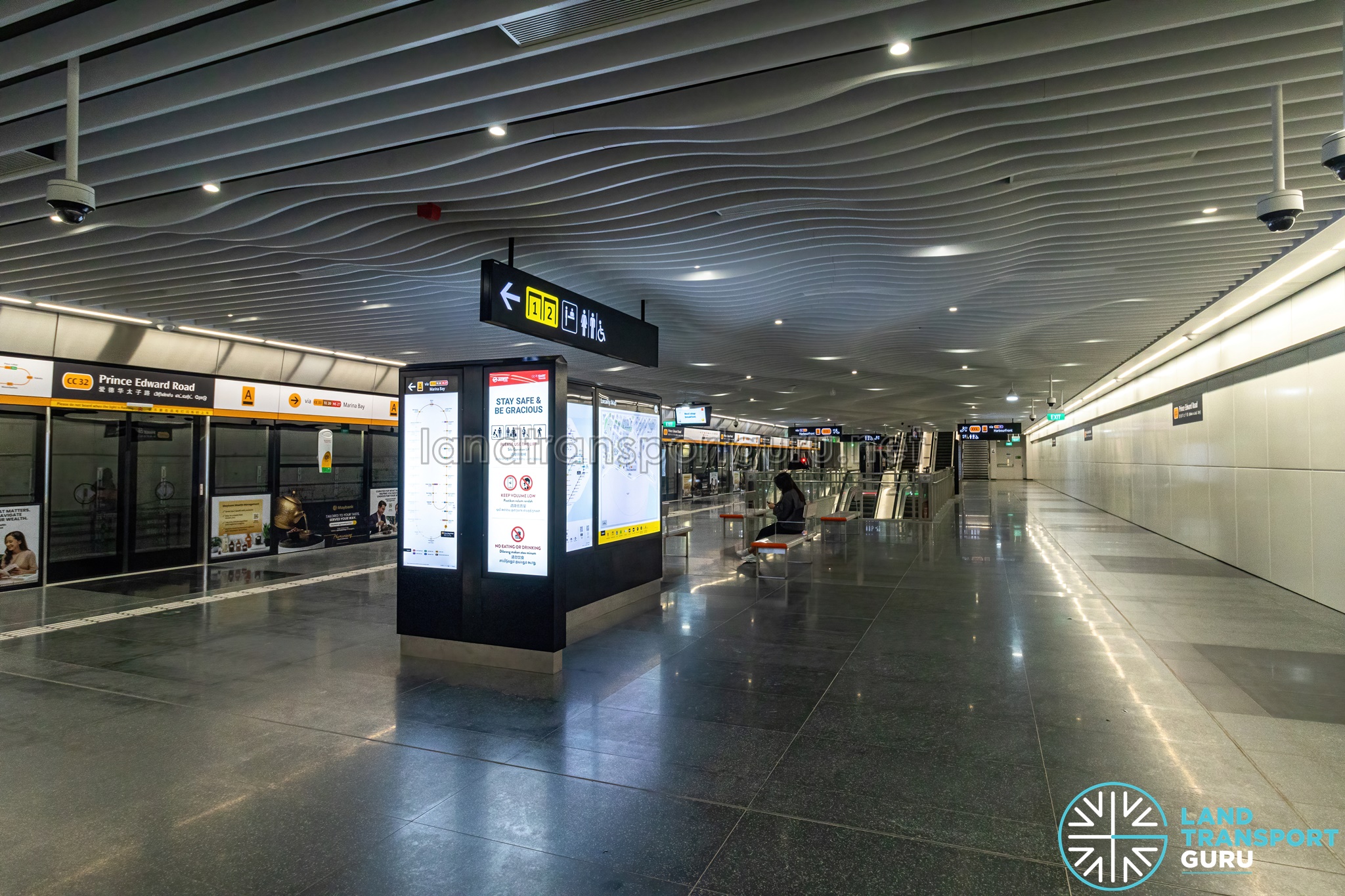

Passenger Information Systems, which are plasma display screens located at each platform, display expected train arrival times and key messages. Tactile flooring helps to guide the visually-handicapped from the platform to the station exits.

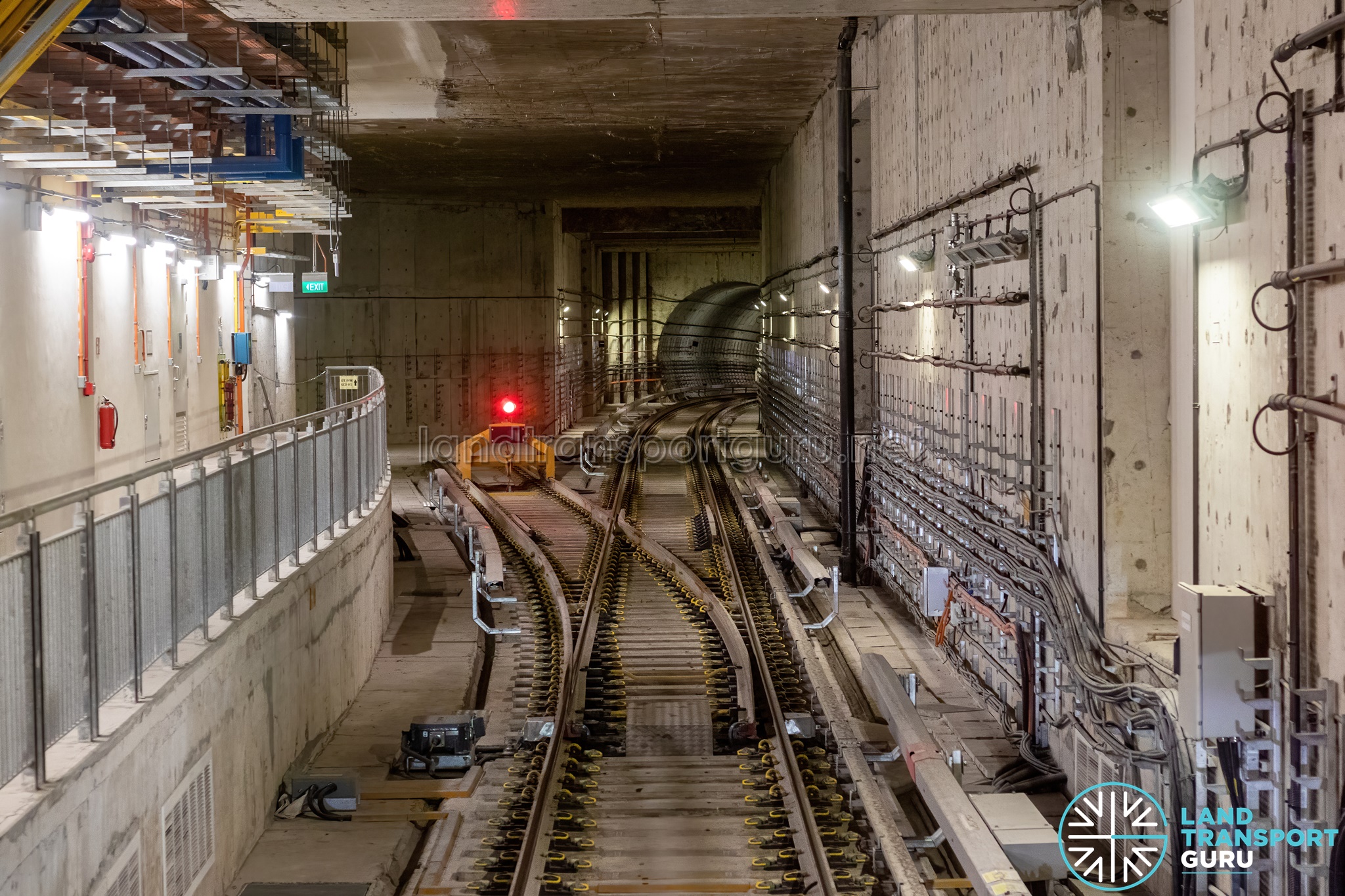

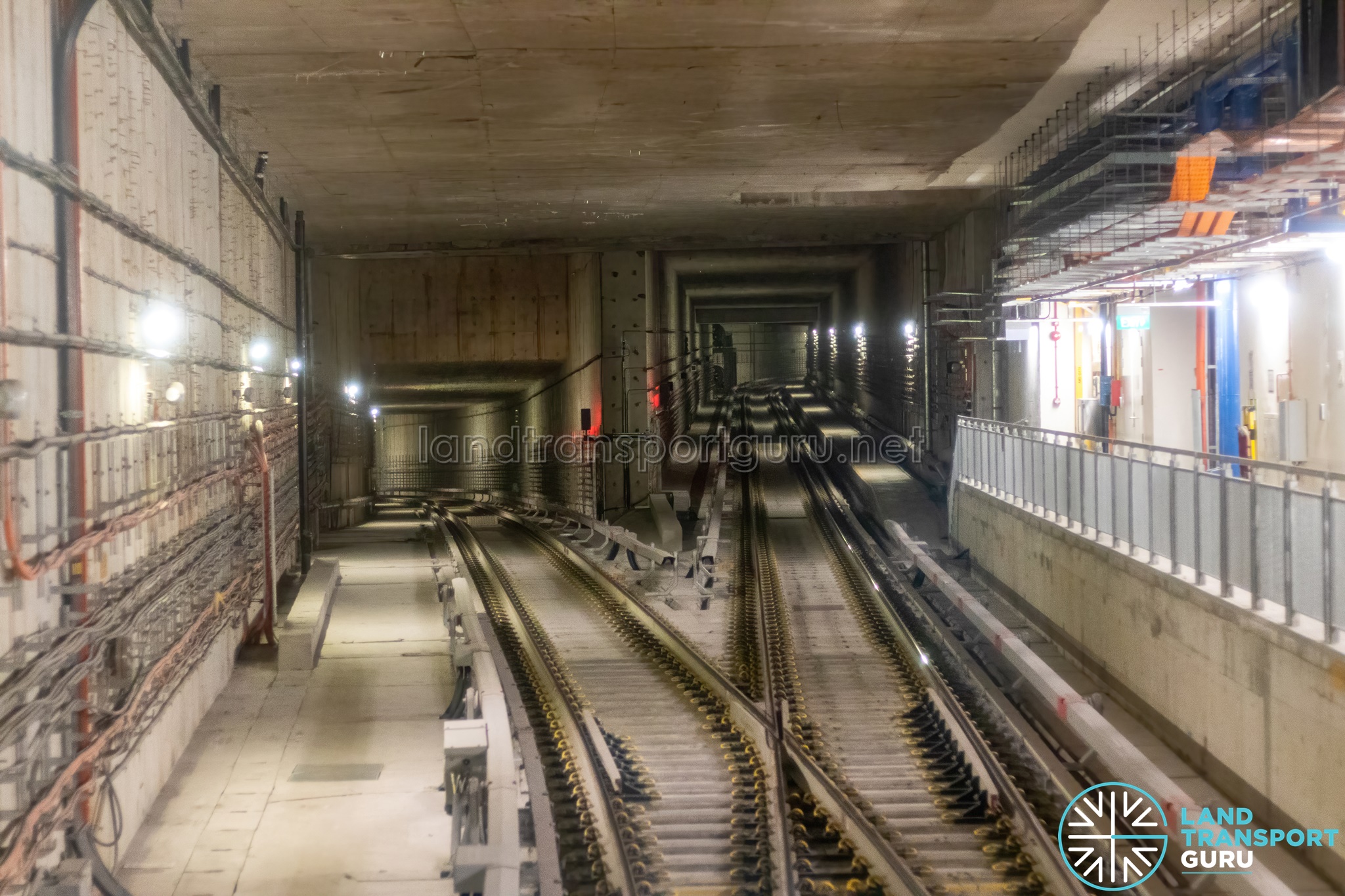

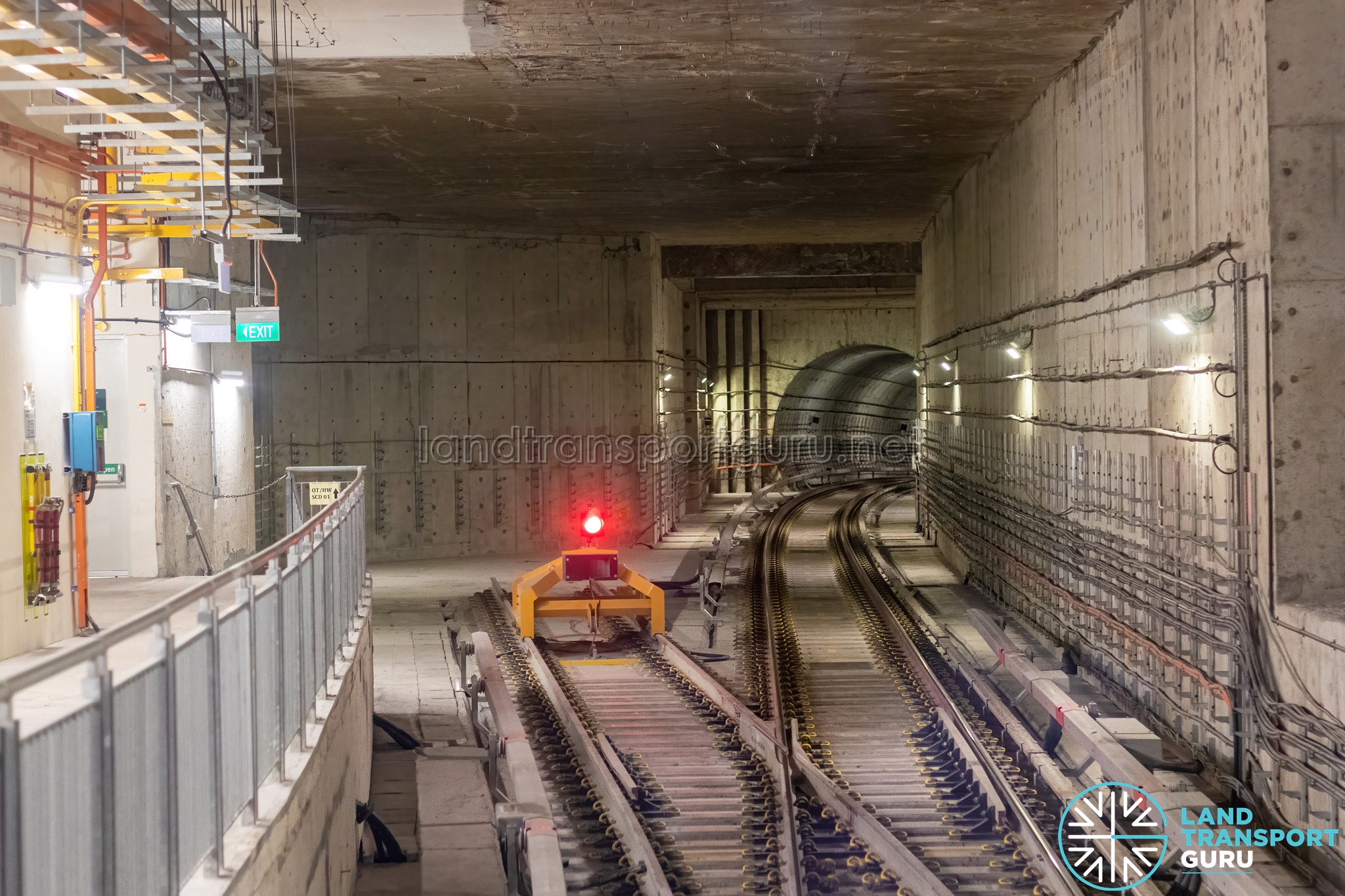

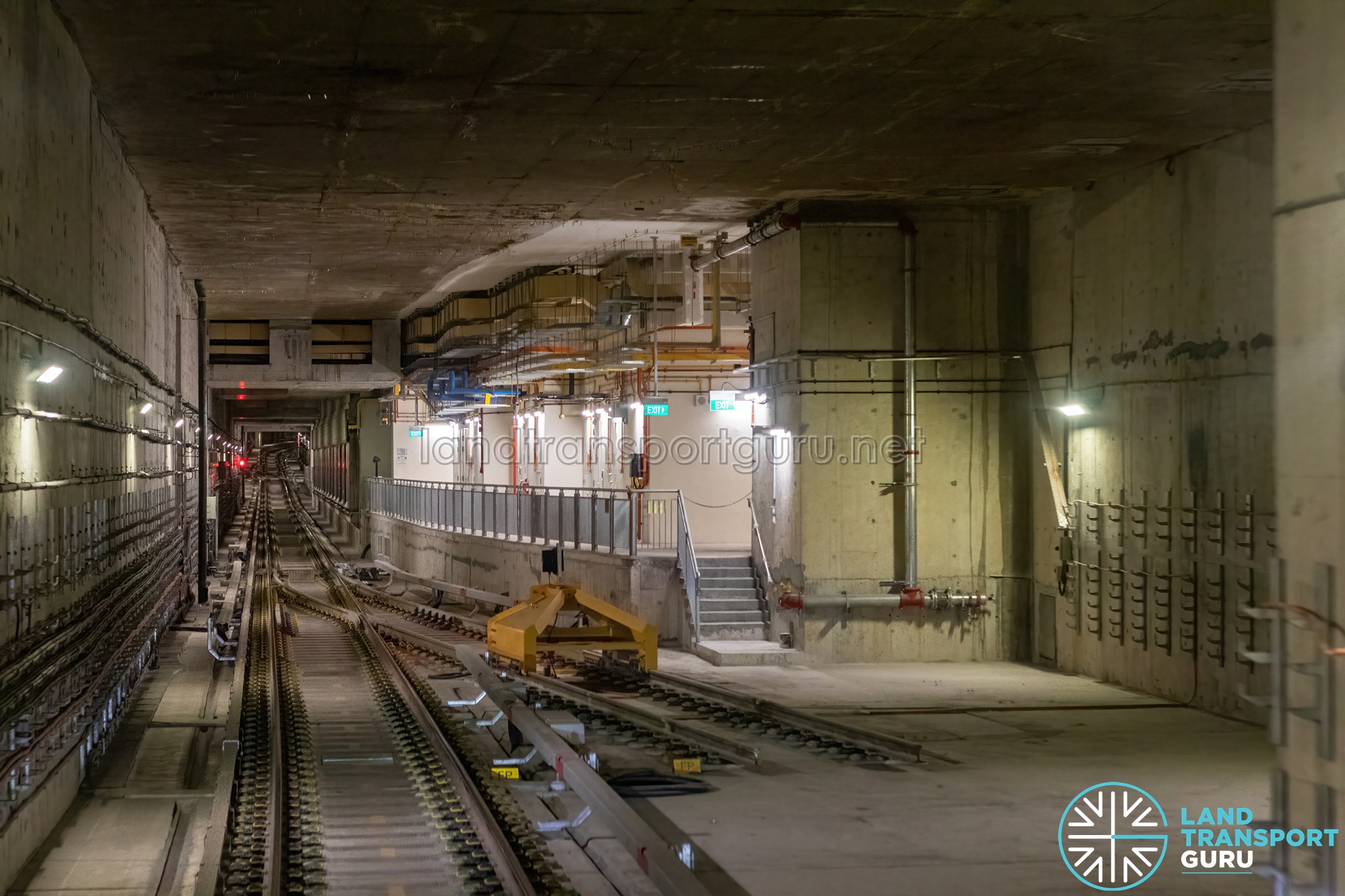

A set of turnback tunnels are constructed to the east of Prince Edward Road MRT Station, facilitating the turnaround of trains in the Circle Line loop service to enhance operations.

Concourse

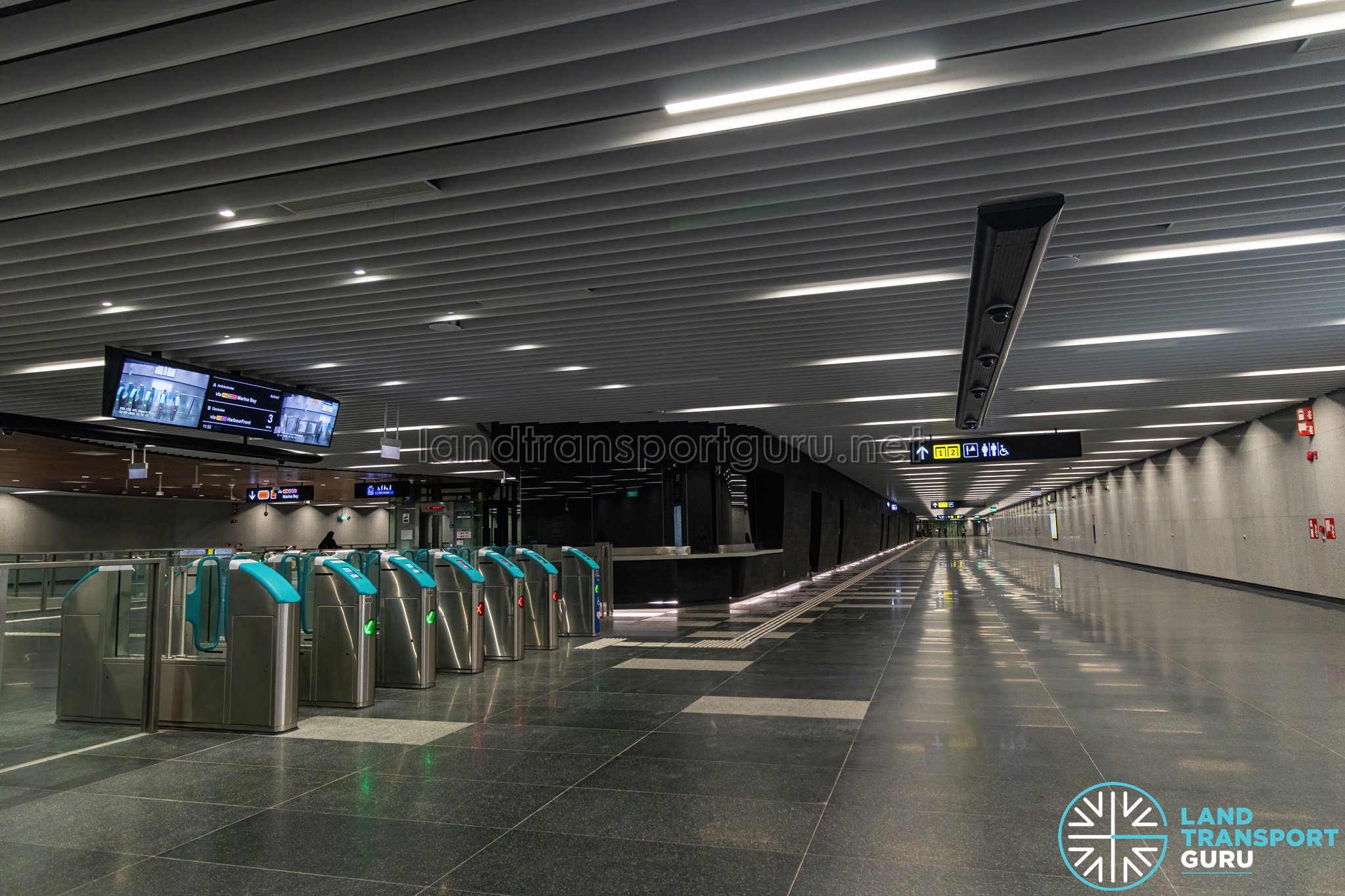

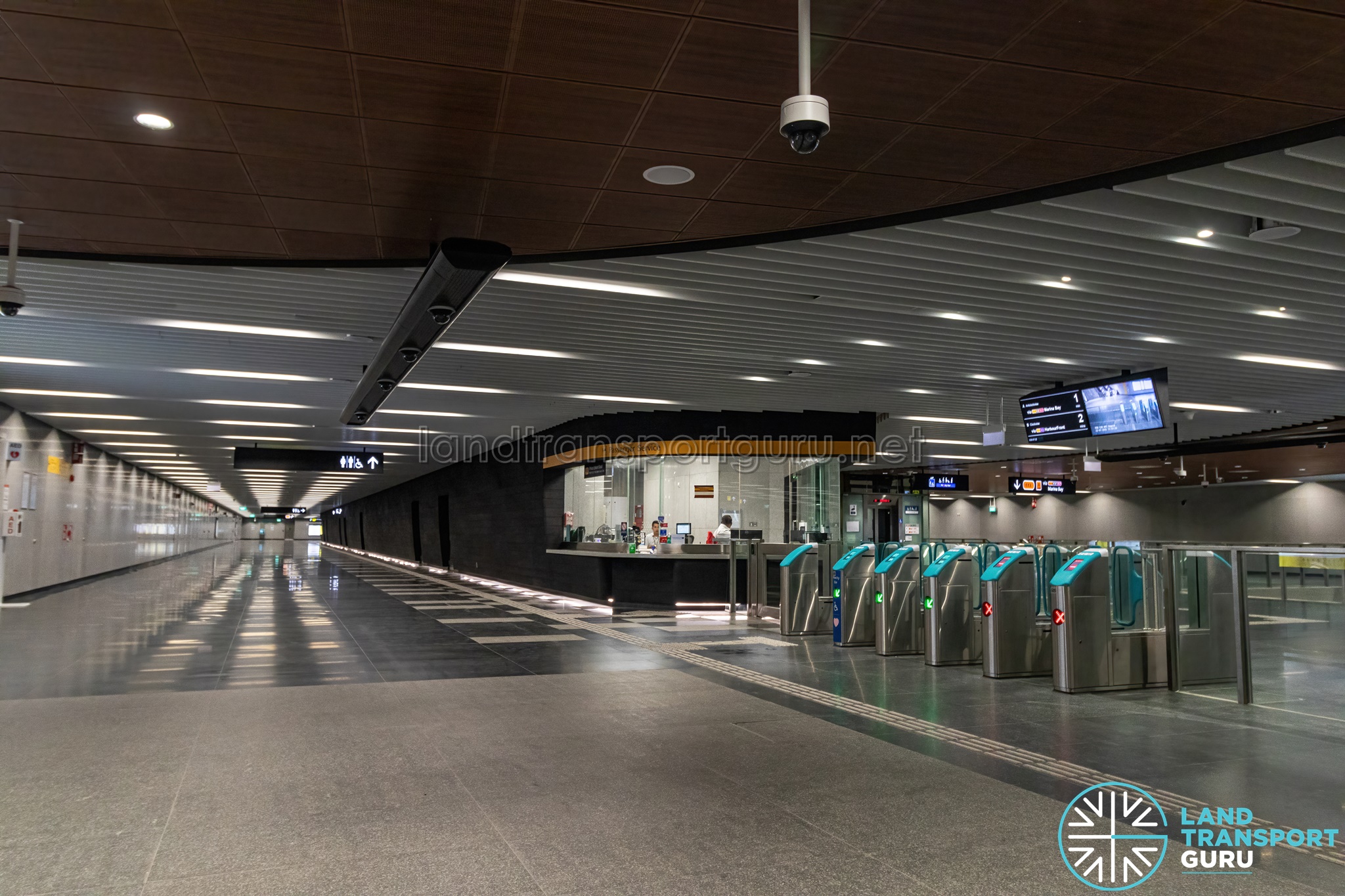

The station concourse at Basement 1 feature faregates for automatic fare collection and provides access between paid and unpaid areas of the station, with at least one bidirectional wide-swinging gate for the benefit of passengers-in-wheelchairs and those carrying bulky items or travelling with prams.

General Ticketing Machines allow commuters to purchase tickets for single or multiple journeys, and along with Top-up Machines, offer contactless card transactions. The station office functions as a Passenger Service Centre, and is staffed during operating hours, where commuters may make travel inquiries or perform card transactions using cash payment.

Toilets are located at concourse level, near the Passenger Service Centre.

Art in Transit (TBC)

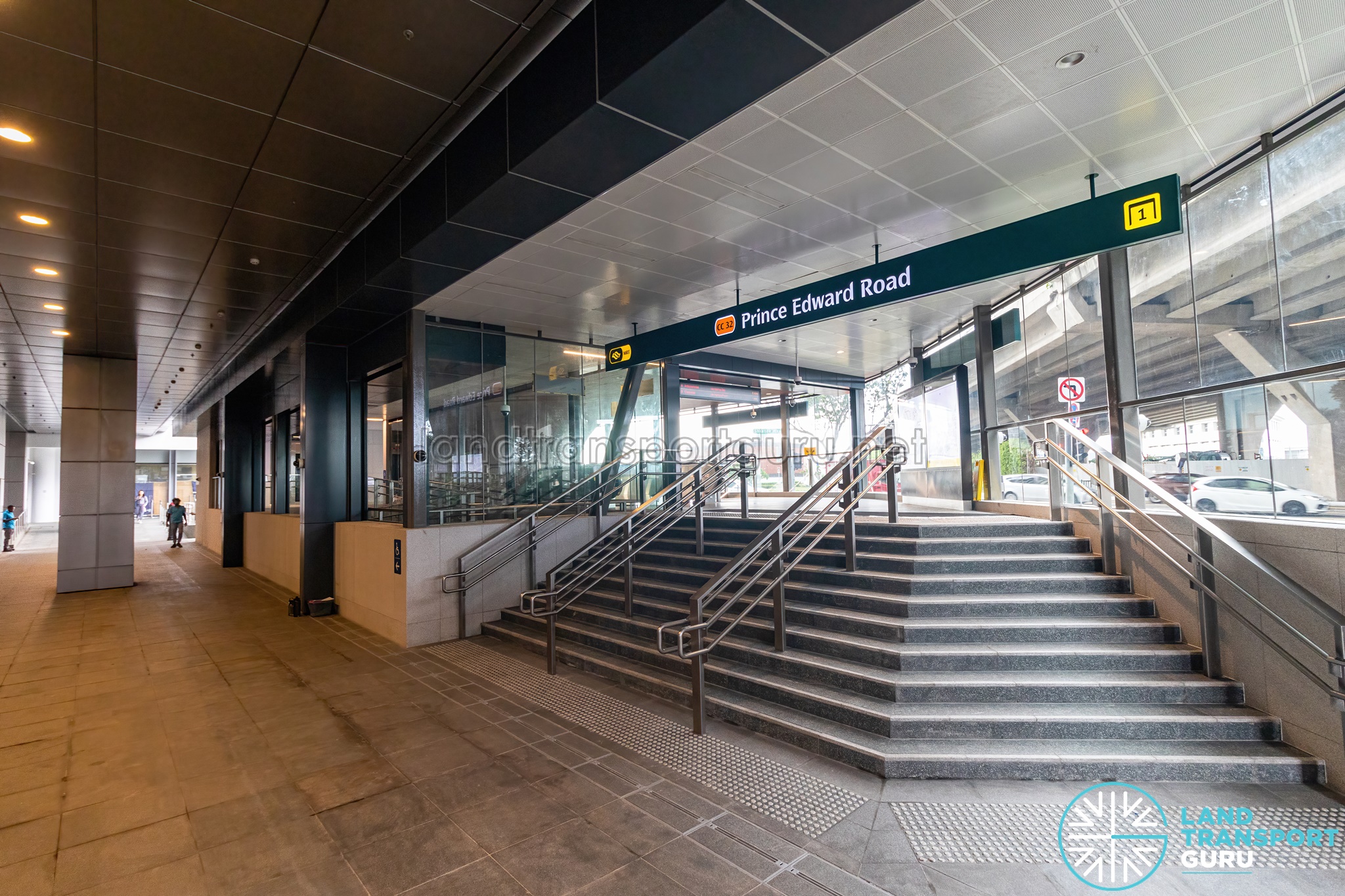

Exits

Prince Edward Road MRT station will likely have at least two exits leading to ground level. More details will be confirmed closer to the opening of the station.

Exit Disabled access Location Nearby
A Palmer Road MAS Building, Hock Teck See Temple, Bestway Building
B Shenton Way 76 Shenton, 78 Shenton

Station Amenities

  • Public toilets at concourse level

Safety Features

  • Emergency Train Stop buttons on the station platform, when activated, will prevent approaching trains from entering the station, and any train already stopped at the platform will be prevented from moving off.
  • Emergency telephones at station platforms and the intercom system inside the lifts enable commuters to communicate with station staff in the Passenger Service Centre.
  • Emergency door handles allow the platform doors to be opened manually from the train-side in the event of failure.
  • Fire Extinguishers in various locations
  • All escalators equipped with Emergency Stop buttons

Transport Connections (TBC)

Rail Bridging Services (TBC)


Passenger Usage Patterns

Construction

Circle Line Stage 6 (CCL6) Contract 885 for the Construction of Prince Edward Road Station and Tunnels for Circle Line 6 was awarded to China Railway Tunnel Group Co., Ltd (Singapore Branch) at a contract sum of S$310.8 million on 9 October 2017. The firm also worked on an underpass for the Havelock Station, using Singapore’s first Rectangular Tunnel Boring Machine, and an underpass at Stevens Station using the same construction method.

Circle Line Stage 6 (CCL6) Contract 886 for the Construction of Cut-and-Cover Tunnels at Marina Bay Area was awarded to Koh Brothers Building & Civil Engineering Contractor (Pte.) Ltd. at a contract sum of S$225.35 million on 8 September 2017.

The working name for Prince Edward Road Station was Prince Edward Station.
