Wrightbus StreetDeck 6×2 Electroliner

The Wright StreetDeck Electroliner 6×2 (YB720) is a three-axle, low-floor double-deck bus. A variant of this model was also developed for Singapore’s urban public transport network, featuring three doors and two staircases.

Wrightbus exhibited the bus at the Singapore Urban Mobility Week (SUMW) 2026, held at Suntec Singapore Convention & Exhibition Centre from 4 to 6 November 2026.


Platform

The Wright StreetDeck Electroliner is a battery-electric double-deck bus platform developed by British bus manufacturer Wrightbus, building upon its established StreetDeck range of double-deck buses first launched in 2014.

The three-axle (6×2) variant was unveiled on 21 July 2025, following two years of development. Prototypes were produced at Wrightbus manufacturing facilities in Northern Ireland and Malaysia, with the platform designed to accommodate both fixed and steerable axle configurations, as well as increased battery capacity.

Wrightbus had previously participated in the Land Transport Authority’s (LTA) Contract PT602 tender for 660 electric buses in 2025. Bamford Bus Company Limited, trading as Wrightbus, was part of a three-company consortium shortlisted for the tender. However, the consortium was unsuccessful, with the six contracts awarded to other suppliers in December 2025.

In May 2026, Wrightbus secured its first order for the three-axle StreetDeck Electroliner, with Hong Kong bus operator Citybus ordering 20 units for delivery in 2027. These buses are manufactured at Wrightbus’ Malaysian facility.


Specifications
Wrightbus StreetDeck 6×2 Electroliner – Specifications
Dimensions 11.99m (L) x 2.52m (W) x 4.4m (H)
Front Overhang: 2,490 mm
Rear Overhang: 2,800 mm
Wheelbase / Bogey: 5,200 mm / 1,500 mm
Bodywork Integral StreetDeck bodywork (Aluminium bolted body)
Assembled at Wrightbus Malaysia
Weights Unladen Weight: 16,700 kg
Gross Vehicle Weight: 26,000 kg
Drivetrain Voith VEDS 1.5 HD liquid-cooled PMSM (Permanent Magnet Synchronous Motor)
Rated Power: 260 kW / 2,070 Nm torque
Max Power: 390 kW/ 3,100 Nm torque
Axles ZF Steer Axle; Voith Drive (Triaxle)
Tyres 305/70 R22.5
Suspension ZF ECAS air, Kneeling
Steering ZF TRW THP90 Power-Assisted
Electrical Continental KIBES 5
Battery CATL BC5+ Lithium iron phosphate battery (Capacity 528 kWh)
Range: 366 km (262–366 km, SORT 1–3 test cycle)
Air-Con Denso (full electric)
Driver Assistance TNT Surveillance
– Integrated Display Screen
– T-CMS831 Camera mirror system
– Forward collision warning system & lane departure warning (T-FA Front Alert Camera)
– Side collision warning system (T-SA Side Alert Cameras)
– Anti-Fatigue system (T-DA Driver Alert Camera)
– Surround view camera system (T-A.I. 360°)
EDS Hanover Electronic Display Sign (EDS)
High Resolution Full Colour LED. EG4 driver controller.
PIDS Hanover Passenger Information Display System (PIDS)
Interior-facing LCD screen (Lower & Upper Deck) + LED Text Display (Lower & Upper Deck)
Doors Ventura Systems
• Front 2-leaf inward gliding door
• Middle 2-leaf plug sliding door
• Rear 1-leaf rapid sliding door
Passenger Capacity 14 Seated (Lower Deck) + 51 Seated (Upper Deck) + 65 Standing = 130 Passengers
Not including 4 foldable seats, 2 wheelchair bays
Other Specifications • Automatic flip-out wheelchair ramp
• 2x DC CCS2 Charging Ports (1x 300A & 1x 500A); System voltage 650 V / 268 A
• Electronic Parking Brake
• VDO Tachograph
• LED Illuminated Stairs
• Interior side wall LED lighting

Layout

The Wright StreetDeck Electroliner is a low-floor double-deck bus with three doors and two staircases. The low-floor layout optimises passenger flow, as the rear staircase leads directly to the third door, facilitating a smoother exit for upper-deck passengers through the rear door. There is one step down at the third (rear) passenger door.

At the time, LTA specifications for double-deck buses called for a three-door layout, including a 2025 order of 300 double-deck buses (Contract PT602) with a three-door, two-staircase layout.


Exterior – SUMW 2026 Exhibition Bus

The Wright StreetDeck Electroliner 6×2 features the 2023-facelifted exterior design. It features a contemporary, rounded front fascia and a distinct wrap-around lower windscreen line designed to give the bus a streamlined, welcoming look.

According to Wrightbus, the design complies with the stringent Transport for London (TfL) Bus Safety Standard, with the lowered, curved windscreen optimising driver sightlines to proactively eliminate blind spots near cyclists and pedestrians.

The bus uses an aluminium frame bolted to a steel chassis, offering a lightweight construction while maximising lifetime structural integrity. It is also painted in LTA’s Lush Green livery, standard for public buses under Singapore’s Bus Contracting Model (BCM).

On the offside of the bus, glass panels along both staircases are also wrapped inside thick, opaque black graphic bands, which makes the bus appear more sleek. The forward staircase band continues down the lower deck, while the rear staircase band wraps around the rear of the bus.

The traditional wing mirrors are also replaced with a high-definition Camera mirror system (from TNT Surveillance) that minimises aerodynamic drag and eliminates tight-clearance side collisions. Electronic Display Signs (EDS) are supplied by Hanover.

Interior Showcase – SUMW 2026 Exhibition Bus

The lower deck of the bus has 14 seats and 2 wheelchair bays (each with two foldable seats). The design features a low-floor aisle from the entrance to the rear staircase, enhancing accessibility.

For accessibility, LTA specifications require two wheelchair bays for passengers travelling in wheelchairs or using personal mobility aids. Level boarding is provided via a fold-out automatic wheelchair ramp at the middle door.

Each wheelchair bay backrest also contains two foldable seats. A side handlebar can be manually deployed and stowed depending on the passenger’s needs. Straps are provided at wheelchair bays to secure strollers.

Staircase & Third Door

The bus is equipped with 2 staircases. The forward staircase is located behind the driver’s cab, and the second is positioned at the rear.

This layout allows passengers to quickly exit from the upper deck via the rear door, while the middle door is used mainly by lower deck passengers, making alighting more efficient. Unlike other three-door designs, there is a single step from the lower deck aisle to the rear door alighting platform, but the platform is sufficiently large for passengers to alight quickly.

Upper Deck

The upper deck seats 51 passengers. All seats on the upper deck are forward facing.

Driver Cabin

The driver’s cabin is outfitted with a TNT Surveillance Advanced Driver Assistance System (ADAS) and Anti-Fatigue System, which integrates lane departure warning, forward collision warning, distance monitoring, pedestrian detection, side blind spot monitoring, and driver fatigue/distraction monitoring features into a single system. A single overhead-mounted touchscreen display is used as the display screen and controller.

Additionally, the bus uses a Camera mirror system instead of traditional wing mirrors. Two vertical CCTV monitors replicate the view of wing mirrors, while a third overhead monitor provides an overhead view of the front and front-left blind spots.


Gallery

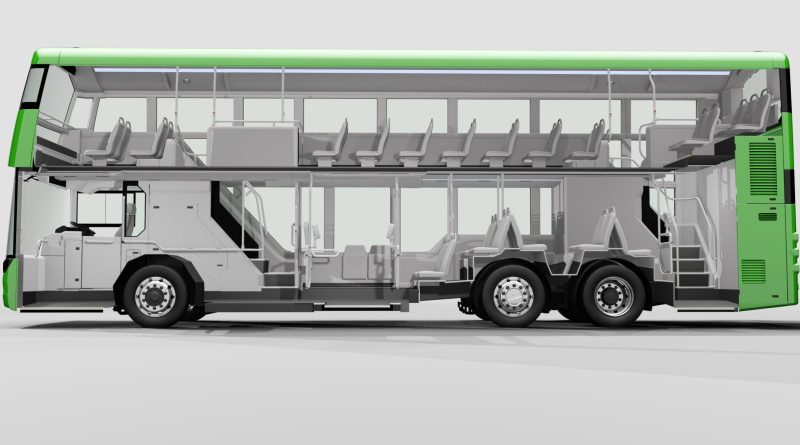

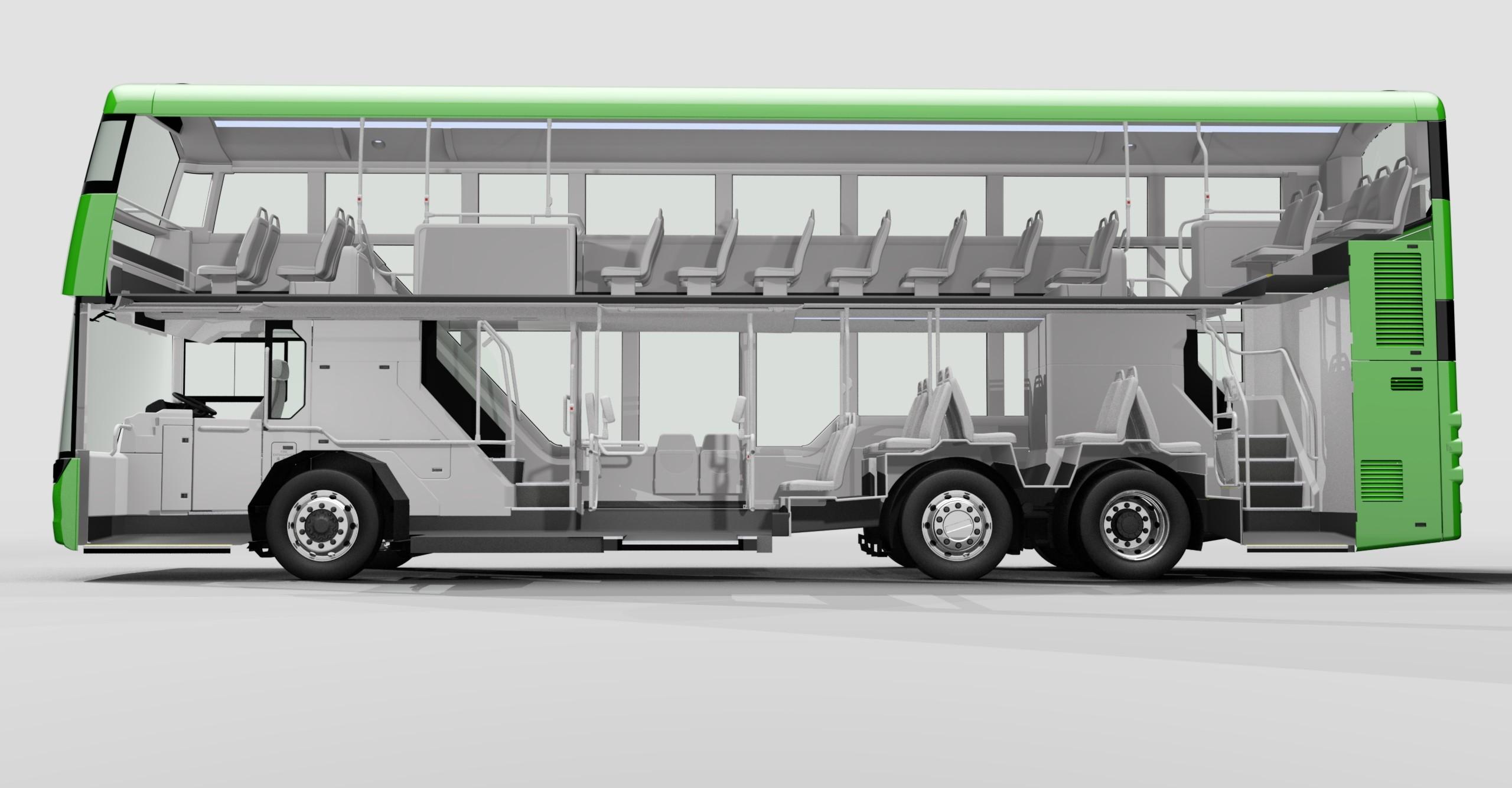

Render
SUMW 2026 Event Ingress & Egress
