CRRC eD12 |
|
CRRC eD12 at SITCE 2024 | |
Manufacturer | Zhejiang CRRC |
Bodywork | Gemilang Coachworks |
Years in operation | TBC |
Operators | TBC |
Technical Data | |
Length | 12 m |
Motor | CRRC permanent magnet synchronous motor (PMSM) |
Battery | CATL LFP (528 kWh) |
Accessibility | Low Floor |
Emission Standard | Zero tailpipe emissions |

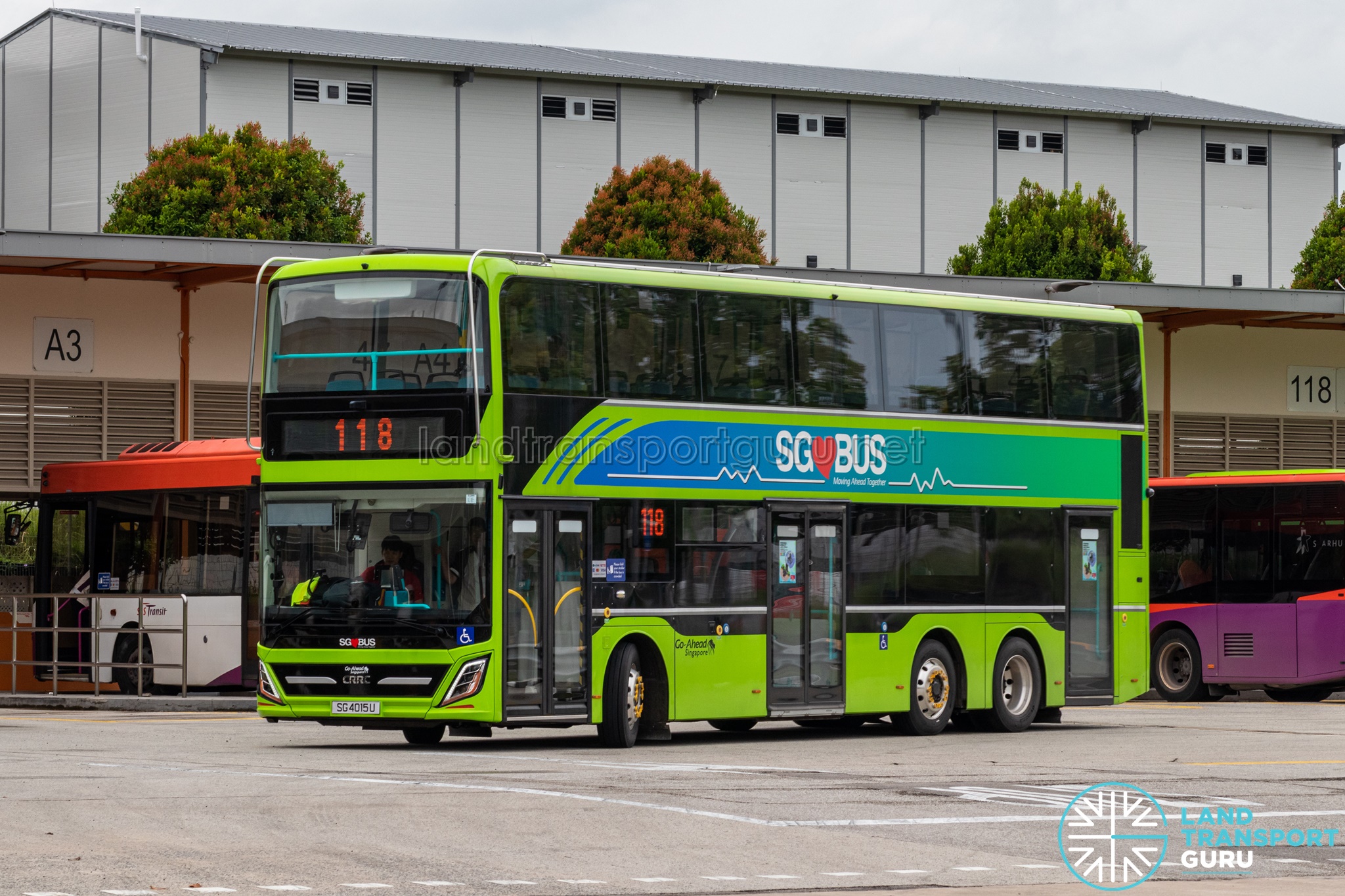

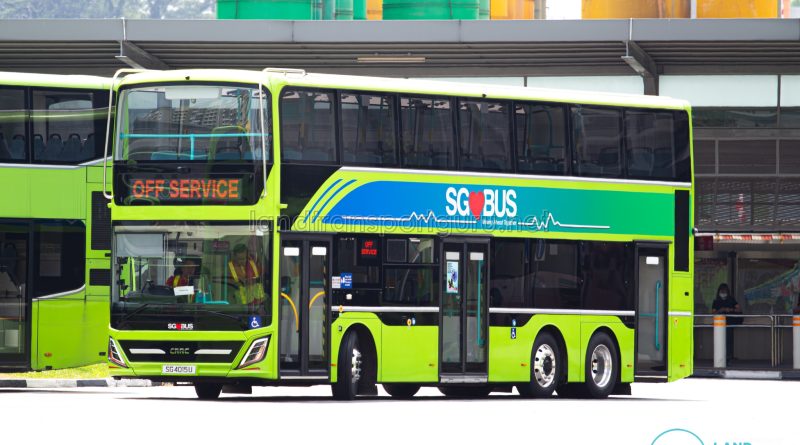

The CRRC eD12 is a battery-electric double-deck city bus offered by CRRC Electric Vehicle Co., Ltd. (中车电动). In Singapore, a 3-door 2-staircase version of this bus was co-developed by CRRC and ST Engineering, with bodywork construction by Gemilang Coachworks.
The bus was first spotted in Singapore in October 2024. Delivered in a Lush Green livery, this bus was exhibited at SITCE 2024, and could be a demonstrator unit to be offered to the Land Transport Authority (LTA) for revenue service trials.
In line with LTA’s ongoing efforts to rapidly electrify the public bus fleet, half of all public buses will be electric by 2030. Detailed coverage of this rollout can be found at Electric Buses in Singapore.
Manufacturer Background
CRRC Electric is an electric bus manufacturer in China, best known for its association with the CRRC conglomerate that builds rail vehicles. Between Jan–Aug 2023, it was the sixth-largest manufacturer in the Chinese new energy bus market by sales volume, with 1,519 buses sold. Apart from selling whole buses, CRRC Electric also sells electric drives and control electronics for electric buses, marketed as “T power”(T动力).
Outside of its domestic market, CRRC Electric has seen volume orders in New Zealand, Sauri Arabia and South Korea, with limited trials of its buses in France, Hungary, Belarus and Malaysia.
Double-deck buses
CRRC previously supplied electric 2-axle double-deck chassis to New Zealand. In 2018, an initial fleet of 10 electric buses was launched, followed by 31 more from 2021. All these buses were built by local coachbuilder Kiwi Bus Builders and began service in Wellington.
In March 2024, a prototype three-axle double-deck (CRRC eD12 MAX) entered passenger service in Auckland, bodied by Gemilang Coachworks. In October 2024, Tranzit Group unveiled a similar Gemilang-bodied CRRC eD12 MAX as part of a fleet of 26 units acquired for service in Waikato and Auckland. These buses are equipped with 508 kWh CATL batteries and have a capacity of 80 seated and 20 standing passengers.
SITCE 2024
A CRRC eD12 bus intended for the Singapore market was showcased at the LTA-UITP Singapore International Transport Congress & Exhibition (SITCE) in November 2024.
The display model at SITCE 2024 featured a Lush Green vinyl wrap promoting AGIL Drivesafe+, an Advanced Driver Assistance System by ST Engineering. For exhibition purposes, the upper deck was modified to include tables and seating that faced each other.
Specifications
Specifications referenced here are from ST Engineering’s datasheet, with additional subsystem details based on observation.
CRRC eD12 – Specifications |
|
Manufacturer | Zhejiang CRRC Electric Vehicle Corporation Limited |
Dimensions |
Length × Width × Height: 12000 mm × 2550 mm × 4390 mm |
Wheelbase |
5220mm + 1550mm |
Weights |
Laden Weight: 24,420 kg Maximum Laden Load: 7,460 kg (front), 6,560 kg (centre), 10,400 kg (rear) |
Axles |
Front Axle: ZF RL82A rigid steering axle Middle Axle: ZF RL82A tag rigid axle Rear Axle: ZF AV133 |
Tyres |
275/70 R22.5 |
Electric Motor |
CRRC permanent magnet synchronous motor (PMSM) Peak power 350kW; Peak torque 3500Nm; Maximum speed 3300rpm, liquid cooling |
Battery |
CATL Lithium iron phosphate (LFP) battery (Capacity 528 kWh) Charged via 2x DC plug-in chargers (CCS Type 2 connector); 175kW Single Gun / 280kW dual gun Cruising Range: 260km (urban bus driving cycles) / up to 310km (equal speed cycles) |
Bodywork |
Gemilang Coachworks bodywork Aluminium alloy body |
EDS | Guangzhou Tongda Auto Electric Co., Ltd. Orange LED Matrix design. |
PIDS | Guangzhou Tongda Auto Electric Co., Ltd. Exterior-facing LCD screen Interior lower deck & upper deck LCD screen Interior lower deck & upper deck LED text display |
Driver Assistance | AGIL DriveSafe+ ADAS • Forward Collision Detection • Time to-Collision Monitoring • Lane Departure Detection • Pedestrian Collision Detection • Blind Spot Detection and Warning • Driver Anti-Fatigue System |
Passenger Capacity | 12 Seated (Lower Deck) + 51 Seated (Upper Deck) + 57 Standing = 120 Passengers Not including 2 foldable seats, 2 wheelchair bays |
Other Specifications | • Electric steering booster pump • Electric air compressor • ECAS with kneeling function • Recirculating ball-type hydraulic power steering machine • Fire retardant, anti-rot treated structural plywood flooring with fire retardant, anti-slip material floor covering • UVC LED Air Disinfection System • Roof solar panel • Kiel Citos seats • Masats door systems • USB charging ports • Automatic wheelchair boarding ramp • Camera mirror system |
Layout
The CRRC eD12 is a full-low-floor double-deck bus with three doors and two staircases. The full-low-floor layout is ideal for passenger movement, as the rear staircase leads directly to the third door, which encourages upper-deck passengers to exit from the rear door.
LTA’s preference for three-door buses is evidenced by LTA’s previous 100 double-deck bus order in 2019, which mandated a three-door two-staircase layout, with the rearmost exit door situated behind the rear axle. More recently, the 360 single-deck electric bus order in 2023 also required a three-door layout.
The bus has a capacity for up to 120 passengers; 63 seated and 57 standing.
Lower Deck
The lower deck of the bus includes 12 seats, 2 wheelchair bays (each with a foldable seat) and licensed standing space for up to 57 passengers. The design features a fully low-floor aisle from the entrance to the rear third door, enhancing accessibility.
Passenger seats are supplied by Kiel (model: Kiel Citos) and come upholstered in grey-blue or maroon seat covers. Stanchion poles are turquoise, a colour scheme similar to that of Volvo B5LH buses, with bell attachment areas coated in yellow to aid with visual identification.
Staircases
The bus is equipped with 2 staircases: the front staircase is located behind the driver’s cab, and the second is positioned at the rear, providing direct access to the third door.
This layout allows passengers to quickly exit from the upper deck, making alighting more convenient and efficient. Most passengers on the lower deck typically exit through the middle door.
Upper Deck
The upper deck seats 51 passengers. For the SITCE 2024 exhibition, a temporary seating arrangement was configured with rear-facing seats and tables to facilitate trade show discussions.
Driver Cabin
The driver’s cabin is outfitted with the AGIL DriveSafe+ Advanced Driver Assistance System (ADAS), which includes forward and side blind spot monitoring, collision detection, and lane departure warnings. An Anti-Fatigue System is also included.
Additionally, the bus uses a camera-based mirror system instead of traditional wing mirrors. Two vertical CCTV monitors replicate the view of wing mirrors, while a third overhead monitor provides an overhead view of the front and front-left blind spots.

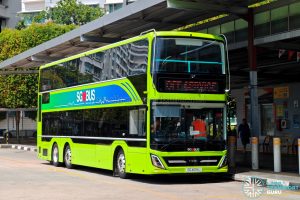

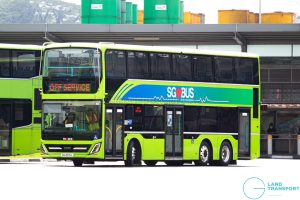

Gallery (Exterior; Pre-debut):
Additional Photos:
See Also:
- CRRC TEG6125BEV03 (C12) – Single-deck electric bus trialled in Singapore from 2021—2023
References:
- China Sold 3,096 Units Medium and Large-Sized New Energy Buses in August | Chinabuses [Accessed 8 Nov 2024]
- Tranzit adds 10 electric double decker bus to Wellington fleet. With Heliox’s chargers | Sustainable Bus [Accessed 8 Nov 2024]
- Metlink adding 98 more electric buses – 31 will be double deckers | Wellington Scoop [Accessed 8 Nov 2024]
- Electric Buses | Kiwi Bus Builders [Accessed 8 Nov 2024]
- Auckland’s first electric double decker bus rolls on busy route | 1News NZ
- Tranzit Group launches new double decker electric bus at BCA conference | Australasian Bus & Coach [Accessed 6 Nov 2024]
- ST Engineering Showcases Smart Mobility Solutions Shaping the Future of Urban Mass Transit – ST Engineering [Accessed 6 Nov 2024]
- Three-Door Double-Decker Electric Bus – ST Engineering [Accessed 6 Nov 2024]
