Jurong East MRT Station

NS1EW24
Jurong East
裕廊东 | ஜூரோங் கிழக்கு
Station Exit A
Station exit A
Address 10 Jurong East Street 12, Singapore 609690
Lines Served   North South Line
  East West Line
  Jurong Region Line (Future)
Operator SMRT Trains (NSL & EWL)
Structure Elevated (All platforms)
Platform Triple Island (NSL & EWL)
Side (JRL)
Opened / Opening 5 Nov 1988 (NSL & EWL)
Year 2028 (JRL)

Jurong East MRT Station (NS1/EW24) is an above-ground interchange station along the North South Line (NSL) and East West Line (EWL), while serving as the terminus of the North South Line. It is located near Jurong Gateway Road and Venture Avenue, and serves the Jurong New Town.

The station opened in November 1988 and was not an interchange station until 10 March 1990 when Branch Line trains ran to Choa Chu Kang from the middle platform at Jurong East. When the Branch Line was incorporated into the extended North South Line on 10 February 1996, it continued to serve as the NSL terminus, and an additional track (and two platforms) were opened on 27 May 2011 as part of the Jurong East Modification Project, enabling faster turnarounds for NSL trains.

Jurong East Station serves the town centre area and is linked by J-Walk. an elevated pedestrian network, to nearby developments such as the JEM and Westgate malls, Perennial Business City, Jurong Community Hospital, and Ng Teng Fong General Hospital. Other nearby community amenities and commercial areas, and large numbers of housing developments are also served. Bus services are offered from the Jurong East Bus Interchange & Jurong Town Hall Bus Interchange, connecting to other parts of the estate.

By Year 2028, Jurong East Station will be an interchange station with the Jurong Region Line Phase 2, with the station code NS1EW24JE5.




First / Last Train Timings

North South Line – (NS1) Jurong East
Destination First Train Last Train
Weekdays & Sat Sun & Public Holidays Daily
NS28 Marina South Pier 5:16am 5:35am 10:46pm
NS19 Toa Payoh 11:28pm
NS16 Ang Mo Kio 12:17am
East West Line – (EW24) Jurong East
Destination First Train Last Train
Weekdays & Sat Sun & Public Holidays Daily
EW1 Pasir Ris 5:42am 6:12am 11:42pm
Connecting to CG2 Changi Airport 10:57pm
EW33 Tuas Link 5:14am 5:44am 12:25am




Station Layout

L3 Platform A North South Line towards NS28 Marina South Pier
Platforms B / C East West Line towards EW1 Pasir Ris
Platforms D / E North South Line towards NS28 Marina South Pier
Platform F East West Line towards EW33 Tuas Link
L2 Concourse Faregates, Top Up Kiosks, Passenger Service Centre, SimplyGo Ticket Office
J-Walk Elevated linkway to JEM, Westgate, Perennial Business City, Jurong Community Hospital, Ng Teng Fong General Hospital
L1 Street Level Bus stops, Taxi stand, pick-up/drop-off point, Retail Shops

Platforms

North South Line & East West Line (L3):
MRT_rail (1)
Platform A: North South Line towards NS28 Marina South Pier via NS2 Bukit Batok (←)
Platform B: East West Line towards EW1 Pasir Ris via EW23 Clementi (→)
MRT_rail (1)
Platform C: East West Line towards EW1 Pasir Ris via EW23 Clementi (→)
Platform D: North South Line towards NS28 Marina South Pier via NS2 Bukit Batok (←)
MRT_rail (1)
Platform E: North South Line towards NS28 Marina South Pier via NS2 Bukit Batok (←)
Platform F: East West Line towards EW33 Tuas Link via EW25 Chinese Garden (←)
MRT_rail (1)

Platform A & B Operating Hours (As of 2021): 6am – 10am & 5pm – 8pm (Weekdays, except Public Holidays)
Apart from the stipulated operating hours, Platform A may also be open to facilitate NSL train withdrawals.

Jurong East station has a total of six platforms, arranged in three island platforms served by four tracks. The North South Line (NSL) and the East West Line (EWL) occupy two tracks each, enabling cross-platform interchange between lines.

The station architecture is unique, featuring a red space frame that spans underneath the roof, enhancing the aesthetics of the station while serving as structural support.

Service Patterns:

Platforms C to F are part of the original station and are open throughout the day; Platforms A and B were opened in 2011 and are used only during the weekday peak hours.

During the off-peak hours, Eastbound and Westbound EWL trains call at Platforms C and F, where only one set of train doors open. Terminating NSL trains call at the middle Platforms D/E, where train doors open on both sides, allowing transfer commuters access to both platforms for both directions of the East West Line and vice versa.

During the peak hours (6am – 10am & 5pm – 8pm on weekdays except Public Holidays), Platforms A and B will operate in addition to the other 4 platforms to enable faster turnaround of NSL trains. Therefore, alternate NSL trains terminating at Jurong East will utilize either Platform A or the middle Platforms D/E. At the same time, Eastbound EWL train doors will open on both sides, allowing transfer commuters to board the connecting NSL train at either platform. At Platform A, NSL passengers transferring to the Westbound EWL will have to descend to the L2 transfer concourse to reach Platform F.

Concourse

The station has a combined ticket concourse located at Level 2.

Connecting all platforms is the transfer concourse at Level 2, located within paid areas of the station. Branching out from the concourse level is J-Walk.



Jurong Region Line (U/C)

The Jurong Region Line opening was announced to be delayed by about one year in a Written Reply by Minister for Transport Ong Ye Kung to Parliamentary Question on Prioritising Early Completion of Jurong Region MRT Line on 1 Feb 2021, with COVID-19 cited as a reason.

JRL Upper Platform
Jurong Region Line (East) towards JE7 Pandan Reservoir via JE6 Jurong Town Hall (→)
MRT_rail (2)
JRL Lower Platform (L3):
^ Connection to New EWL Westbound Platform ^
Jurong Region Line (East) towards JS3 Tengah via JE4 Toh Guan (←)
MRT_rail (2)

Jurong East JRL station has two above ground Jurong Region Line platforms in a side platform arrangement, expected to open for passenger service in Year 2028. The upper platform will be served by the southbound trains towards Pandan Reservoir.

The lower JRL platform will also connect to the existing EWL Westbound track, providing an additional platform for trains towards Tuas Link.

The station platforms are built to four-car length to cater for future expansion, although trains will only operate in a three-car formation.

Station Amenities

  • Public Toilets at Street Level (L1)
  • Retail Shops at Street Level (L1)
  • ATMs and Self-service Machines at Concourse Level (L2)
  • Bicycle racks at station exits
  • Top Up Kiosks
  • SimplyGo Ticket Office
    Operating Hours: 12:00pm to 7:30pm daily.
    Closed for meal break from 3:45pm to 4:45pm daily

Exits

Jurong East MRT station has two exits at ground level (A and B) and another two exits at Level 2 (C and D), all of which offer barrier-free accessibility. Passengers heading to Jurong East Bus Interchange & Jurong Town Hall Bus Interchange can use Exit B to reach the interchange via an overhead bridge.

For Causeway Link Cross Border bus services towards Johor, use Exit B to Jurong Town Hall Bus Interchange.

Exit Location Nearby
A Jurong Gateway Road Jurong East Central, Al Mukminin Mosque, SATA Jurong Med Ctr, CPF Jurong Building, Genting Hotel Jurong, Jurong Regional Library, Jurong SDA Church, Omni-Theatre / Snow City, Science Centre Singapore
B Jurong Gateway Road Venture Avenue, Jurong East Bus Interchange, Jurong Town Hall Bus Interchange, International Business Park, IMM, The JTC Summit, Vision Exchange, Jurong Town Hall, Jurong East MRT Private Bus Pick Up Point
C J-Walk
(Level 2 / JEM)
J-Walk to: JEM, Perennial Business City, Ng Teng Fong General Hospital (Tower B), Jurong Community Hospital (Tower C)
D J-Walk
(Level 2 / Westgate)
J-Walk to: Westgate, Ng Teng Fong General Hospital (Towers A & B), Devan Nair Institute for Employment and Employability (e2i), IMM




Transport Connections

Jurong East station connects to several bus stops in the vicinity, as well as taxi stands, passenger pick-up points and a private bus pick-up point.

Bus

There are two bus interchanges and three official bus stops linked to Jurong East station. Other bus stops are added here to better represent bus connections.

No. Bus stop Exit Bus Routes
Jurong East Bus Interchange B 41, 49, 51, 51A, 52, 66, 97, 97e, 98, 98M, 105, 105B, 143, 143M, 183, 183B, 197, 333, 334, 335, 506, 993
Jurong Town Hall Bus Interchange B 78, 78A, 160, 160A, 870, 870A, CW3, CW4, CW4S
B/s 1 28061 – Boon Lay Way (J Gateway) A 49, 98, 98M, 99, 990
B/s 2 28069 – Boon Lay Way (Blk 203) D 49, 99
B/s 3 28201 – Jurong Gateway Rd (Opp The JTC Summit) B 990
28199 – Jurong Gateway Rd (Opp JEM) B 333
28211 – Jurong Gateway Rd (Bef Jurong East Stn) A 41, 51, 52, 78, 98, 98M, 105, 143, 143M, 160, 183, 334, 335, 870, 990
28249 – Jurong Town Hall Rd (Jurong East Lib) A 51, 51A, 78, 78A, 79, 79A, 143, 143M, 176, 178, 198
28241 – Jurong Town Hall Rd (Opp Jurong East Lib) A 51, 78, 143, 143M, 176, 178, 198

Road

Taxi stands and pick-up/drop-off points for cars and private buses are located next to station exits:

Exit Road Provisions
B Jurong Gateway Road Taxi stand (J08), pick-up/drop-off point
B Venture Avenue Private bus pick-up/drop-off point

In addition, more taxi stands and pick-up/drop-off points are located beside JEM and Westgate malls and are not shown above.

MRT Bus Bridging Service

In the event of a MRT service disruption affecting Jurong East station, MRT Bridging Buses may be activated to ply affected stretches of the North South Line or East West Line. In which case, the buses can be boarded from the following bus stops:

Towards Bus stop Exit
North South Line (NSL Bridging Bus)
NS28 Marina South Pier B/s 3: 28201 – Jurong Gateway Rd (Opp The JTC Summit) B
East West Line (EWL Bridging Bus)
EW1 Pasir Ris B/s 2: 28069 – Boon Lay Way (Blk 203) D
EW33 Tuas Link B/s 1: 28061 – Boon Lay Way (J Gateway) A

In the event of a large-scale rail disruption affecting multiple stations, special bridging bus services may be activated in addition to the usual bus bridging services.

  • Boon Lay – Jurong East – Clementi – Buona Vista
  • Choa Chu Kang – Jurong East

In addition, passengers can board free regular bus services at the following bus stops when activated:

  • East West Line
    Jurong East Bus Interchange, Bus Stops 1 & 2
  • North South Line
    Jurong East Bus Interchange & Bus Stop 3

Passenger Usage Patterns

Jurong East is a key interchange station linking the North South Line with the East West Line in the West. Conveniently located within the developing Jurong East regional centre, the station benefits shopping centres, office buildings and other attractions in the vicinity, in addition to being a key transport node for NSL/EWL transfer passengers and residents living in Jurong East. Hence, the station encounters very high demand throughout the day.

Construction

Jurong East station and Ulu Pandan Depot were built as part of Contract 403.

Platform Modification

In 1999, upgrading work was carried out at Jurong East to cater to rising passenger volumes. Six existing openings between the concourse level and platform level were covered to make the platform more spacious. Construction cost $350,000 and took around 6 months to complete.

Four of the openings, which are provided for the escalators and stairs to serve the concourse and platform levels, were covered. The other two openings, which allow for a view of the platform level from the concourse level, was totally covered.

Jurong East Modification Project

The Jurong East Modification Project (JEMP) added two new platforms and a new track at Jurong East, permitting two trains along the North South Line to enter and depart the station simultaneously. Previously, trains would arrive and depart Jurong East station using a shared middle track, hence the new platforms and track would allow for higher train frequencies on the NSL and reducing waiting times (and overcrowding) on NSL trains.

The infrastructural upgrade also involved new viaducts linking the new track with the NSL and EWL running lines, and noise barriers for the viaducts closest to adjacent HDB blocks. Addition and alteration works were also carried out on all lower floors of the station, expanding the transfer concourse with an unpaid corridor as part of J-Walk. The eastern side was also renovated with additional faregates and a ground floor exit.

To connect the new train tracks to the existing tracks, train services between Jurong East and Clementi were halted on 4 & 5 September 2010, followed by train services between Jurong East and Bukit Batok on 18 & 19 September 2010. SMRT deployed high-frequency bus bridging services across the affected stretches on both weekends. Originally scheduled for 2012, the completion date was brought forward to 2011. At completion, the original platforms: A (East-bound), B (West-bound), C and D (NSL via Woodlands), were renamed to A through F as detailed in the platform layout diagram above.

When the new platform opened on 27 May 2011, they were in operation only during the weekday morning peak hours, from 7:00am to 9:00am. From 27 December 2011, weekday evening peak hour operations from 5:00pm to 8:00pm started, along with an extension of morning opening hours to 10:00am.

In 2018, the new platform operating hours were revised to 6:00am – 10:00am, 5:00pm – 8:00pm. Thereafter, operating hours were further extended to 6:00am – 11:00am, 5:00pm – 9:00pm.

Jurong Region Line

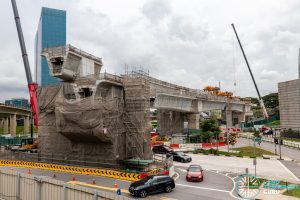

Jurong East JRL Station will be constructed as part of Contract J110 – Design and Construction of Jurong East Station and Viaduct including Addition and Alteration to the existing Jurong East Station for Jurong Region Line, which was awarded to Daelim Industrial Co. Ltd. at a contract value of $197.4 million in February 2020.

Future Developments

By Year 2028, Jurong East station will be an interchange station with the Jurong Region Line Phase 2. The elevated JRL station, with Side Platforms, will be built south of the existing station and form an integrated development with Jurong East Bus Interchange.

According to initial concept plans, the JRL platforms will adopt a stacked platform design with the lower platform at the same height as the existing EWL & NSL platforms. A new upper transfer concourse and JRL upper platform level will be built above all existing platforms, with escalators and stairs connecting the new transfer concourse to existing platforms.
